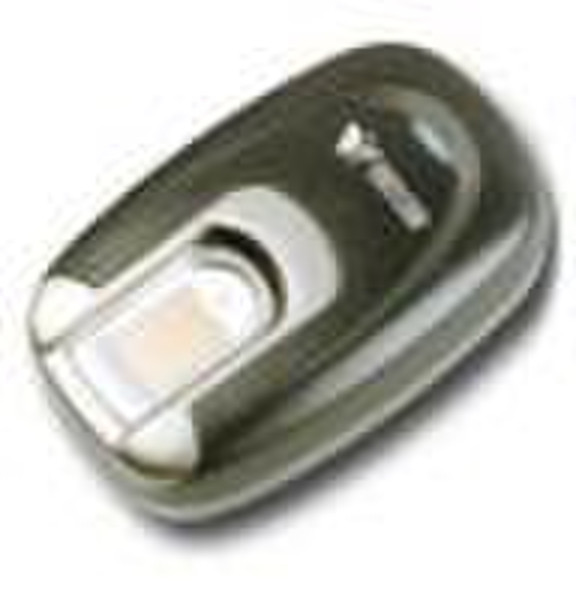

Fingerprint Reader

Fingerprint reader Features: Support USB and RS232 interface; Provide an integrated SDK, abundant API interface and command sets; Support operating systems like Windows 2000/XP, Unix and Linux; Apply semi-conduct fingerprint sensor, with live fingerprint acquisition functions; Favorable adaptability to difficult fingers like dry, wet, dirty etc; Embedded high speed DSP processor and independent copyright of fingerprint algorithm, can finish functions as fingerprint acquisition, image processing, image characteristics getting, fingerprint matching etc. Indicator: FRR≤0.01% FAR≤0.0001% Time for logging: <1s Time for matching: 300ms Matching mode: 1:1 / 1:N / background matching (optional) Fingerprint template capacity: 256 byts Anti-static indicator: >±15kV Sensor life: 1million times Anti-electromagnetic interference indicators: according to IEC 61000-4-3 standard Storable fingerprint capacity: 500 (1000expandible) Communication interface: Standard USB2.0 High speed / standard RS232 (optional) Image resolution: 363 dpiFPC/ 508 dpiUPEK Sensor effective acquisition size:14 mm×10.64mmFPC/ 14.4mm×10.4mmUPEK Effective acquisition pixel: 152×200 pixelsFPC/ 208×288 pixelsUPEK Components: 1.Fingerprint sensor.Fingerprint image acquisition 2.Operating lamp(red or blue) .The red light is on: suggests that the fingerprint scanner is working . .The red light is flashing: suggests failure in operation. .The blue light is on: suggests that PC sends orders to fingerprint scanner for user operation; .The blue light is flashing: suggests successful operation. 3.Link(USB interface or RS232 interface).Interface for communication with PC
